Formamentis delivers industrial components that helps electric industry to improve performance, reliability and compliance. From process optimization and operational efficiency assessments to quality management support, our approach focuses on measurable outcomes: reduced costs, higher throughput, and fewer defects.
Proper lighting enhances architectural features, making rooms feel more open and expansive or intimate and cosy. Lighting is the most ephemeral and abstract design element that can be used to emphasize any architectural element.

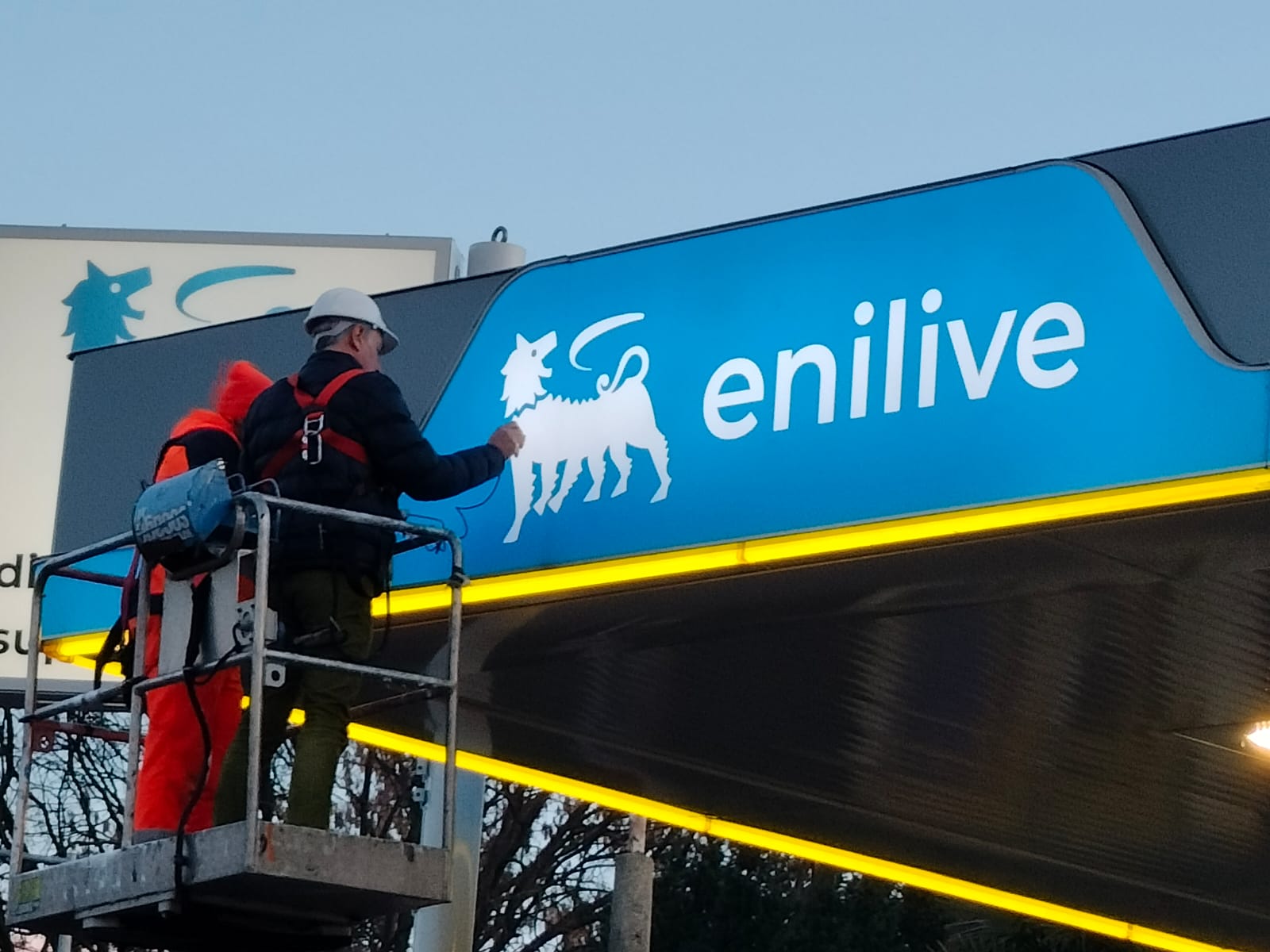

Luminance checking measures the amount of light emitted by a surface, measured in candelas per square meter (cd/m²). The process varies depending on whether you are analyzing a luminous sign, environmental lighting, or architectural contrast.

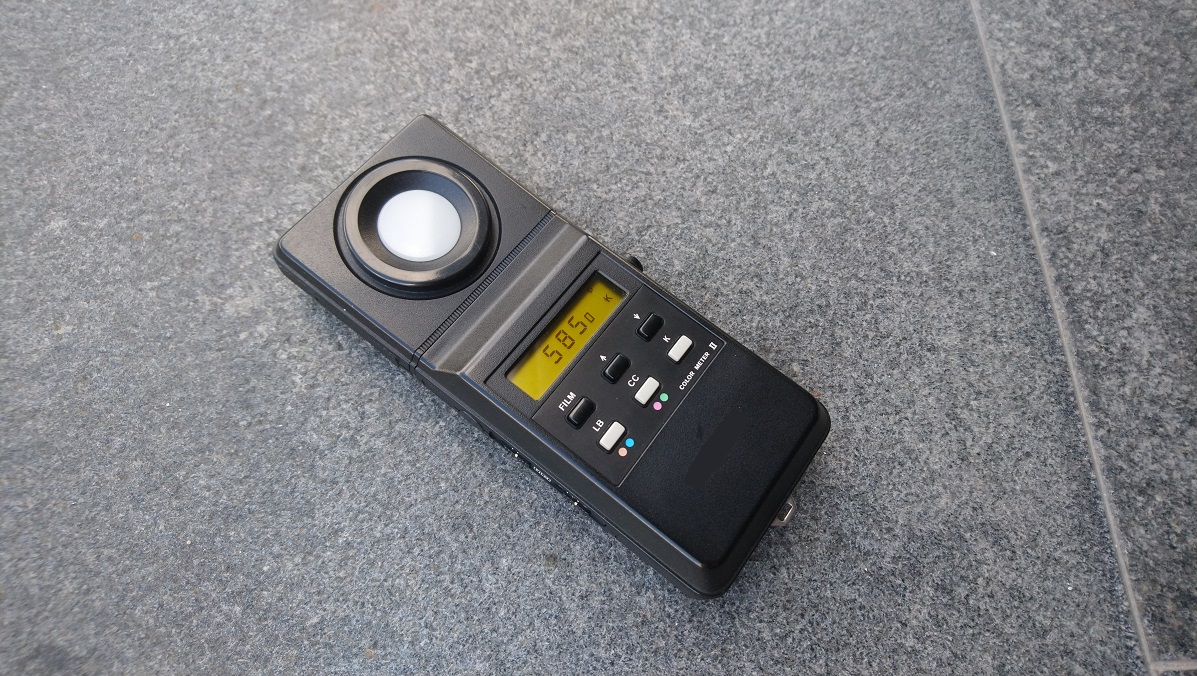

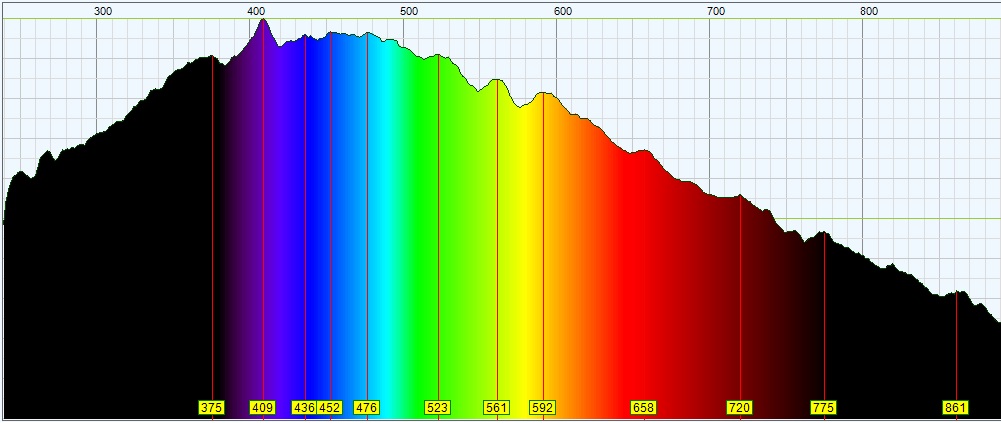

It’s a metric used to describe the colour appearance of a light source, measured in kelvin (K). It dictates whether a light source appears warm (yellowish) or cool (bluish-white). Checking and measuring CCT is essential for photography, interior design and commercial lighting to ensure a desired atmosphere.

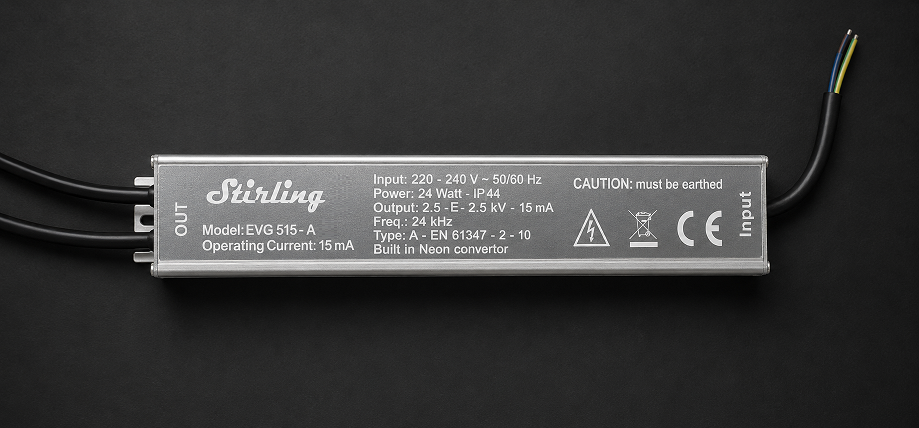

This device is a “Type A” control gear for gas discharge tubes (generally called cold cathode or neon tubes) and complies with Low Voltage and EMC directive based on EU standard EN 61347-2-10.
| Input | Output | ||
|---|---|---|---|
| Voltage | 220 ÷ 240 V AC | Rated Voltage | 2,5 – E – 2,5 kV |
| Current | 115 mA | Rated Output Current | 15 mA |
| Power | 24 watt | Short circuit | 21 mA |
| Frequency | 50 ÷ 60 Hz | Frequency | 20 ÷ 24 kHz |
| Class | I | Earth leakage switch | No |
| Size | 246 × 39 × 25 mm | Open circuit monitor | No |
| Weight | 425 gr. | EN 61347-2-10 | Type A |
| Dimmable | NO | Output HV cable | 0,30 m |
| Supply cord | 0,60 m | Cable Type | EN 61347-2-10 |
| Type | H05RN-F – 3G0.75 | Cable cross Section | 0,50 mm² |
| Surge Protection | 4 kV | IP grade | IP 44 |

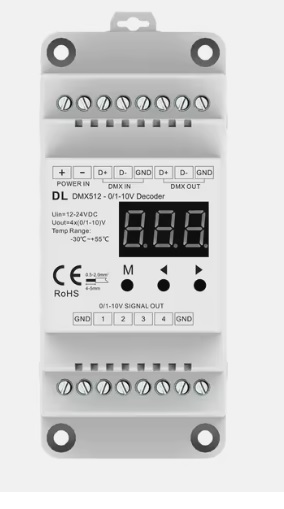

This device converts the DMX signal to 0/1-10 V DC. Up to 4 outputs. Useful to drive any control gear with 0-10 V control system.

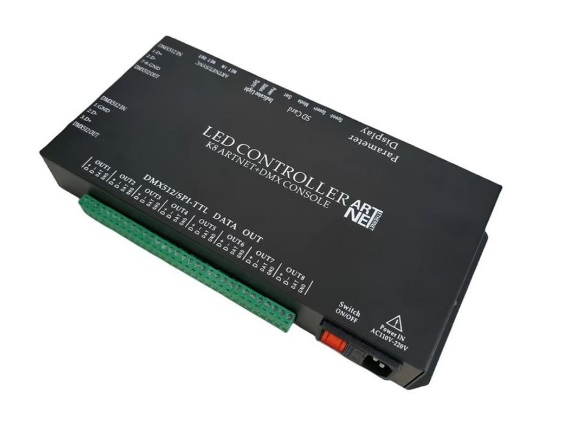

Suitable for SPI and DMX512 LED Light, Online Offline, Addressable Programmable, 1G SD Card with 96 Program Modes and Offline Software. Suitable for theatre, stage performances, entertainment etc.
